VMEET SG-IPC series (4K 8K 16K) industrial computer
  • VMEET SG-IPC series (4K 8K 16K) industrial computer
  • VMEET SG-IPC series (4K 8K 16K) industrial computer
  • VMEET SG-IPC series (4K 8K 16K) industrial computer
  • VMEET SG-IPC series (4K 8K 16K) industrial computer
  • VMEET SG-IPC series (4K 8K 16K) industrial computer
VMEET SG-IPC series (4K 8K 16K) industrial computer

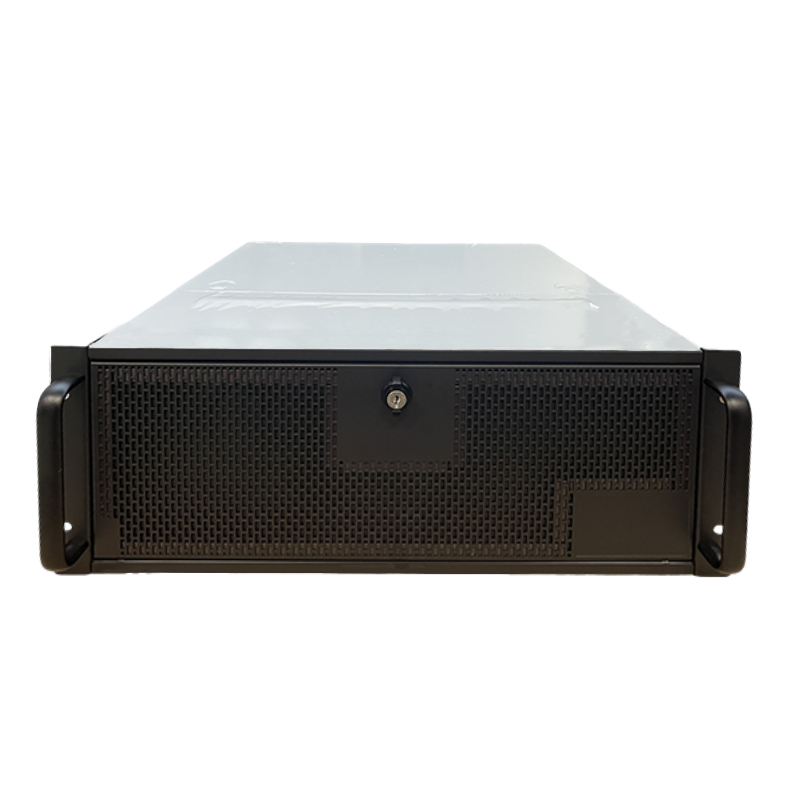

★ Standard 4U rack-mounted custom chassis, supports rail installation

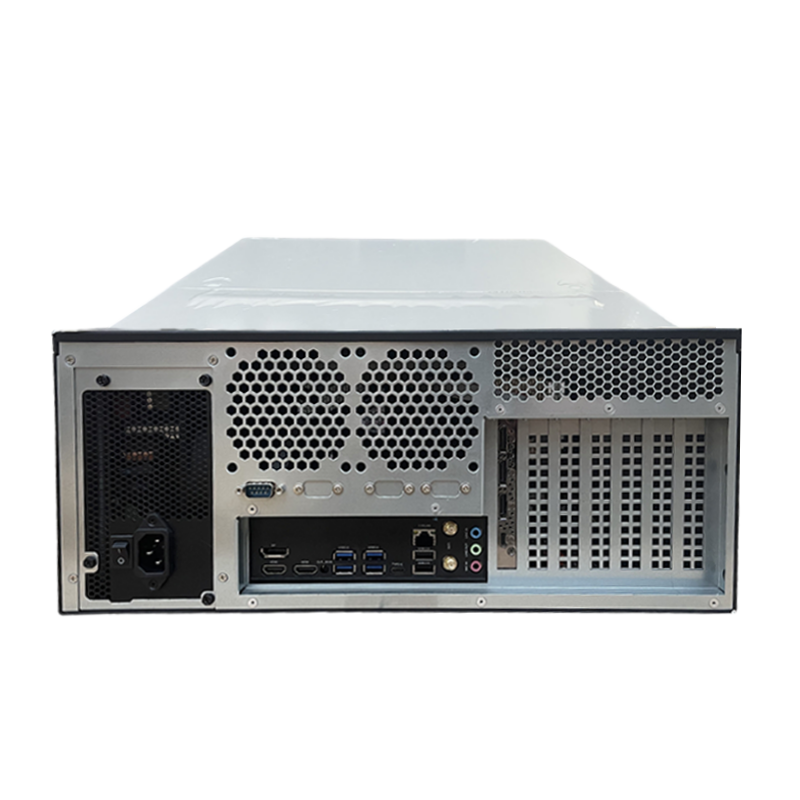

★ Rear BIOS reset button

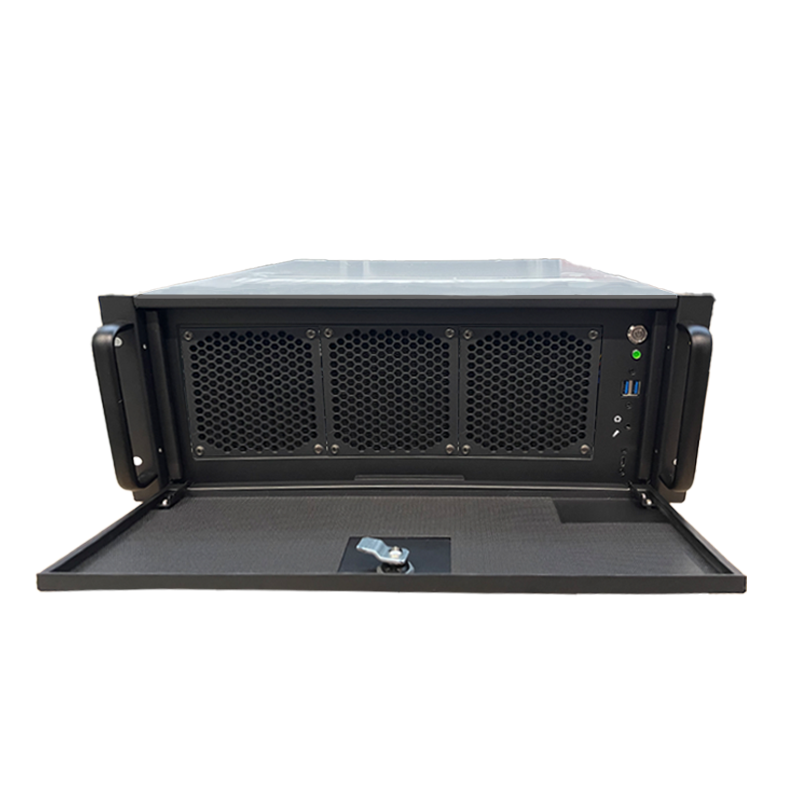

★ Front liquid cooling radiator, optional 360 liquid cooling available
★ Front and rear Type-C ports for quick connection to USB drives/external hard drives and fast data transfer
★ Direct WiFi connection, rear 2.5GB Ethernet port for high-speed network connectivity.
★ Supports NDI source capture, website/capture card/streaming media input sources
★ Supports control via visual smart control platform
Description
The VMEET SG-IPC series (4K 8K 16K) industrial computer is a high-performance professional media control server, equipped with the powerful 13th Gen Intel Core CPU and NVIDIA professional graphics card, capable of 8K video hardware decoding and playback. It comes with VMEET’s latest multimedia control software, supporting multi-channel hardware decoding of high-definition video materials to fully utilize all GPU decoding and rendering performance. It also features multi-channel audio and video control, visual media management and scheduling, output splitting and reorganization, creative display, and meets the ultra-high-resolution playback and display needs in outdoor advertising screens, naked-eye 3D, immersive environments, data centers, exhibitions, and other fixed installation scenarios.
Features
★ Standard 4U rack-mounted custom chassis, supports rail installation
★ Rear one-click BIOS reset button for quick BIOS reset
★ Front liquid cooling radiator, optional 360 liquid cooling available
★ Equipped with Type-C ports on both ends, allowing for fast data transfer with USB drives or external hard drives.
★ Built-in WiFi module for direct WiFi connection
★ Rear 2.5GB Ethernet port for high-speed network connectivity
★ 4 DP outputs, supporting 4096×2160@120Hz per channel
★ 2 HDMI and 1 DP monitor interface, supporting 4K monitors
★ Supports 8K video hardware decoding
★ Supports playback control via tablet-based central control system
★ Supports TCP/UDP protocol network commands
★ Supports screen rotation at any angle for creative display applications
★ Built-in universal decoder, compatible with professional video formats such as HAP, DXV, HEVC, and sequential frames
★ Supports splitting, reorganization, and rotation of multiple output interfaces for creative display on irregular screens
★ Supports output interface splitting for ultra-wide screens and fast mapping adjustments
★ Supports 12 layers and 1 audio layer simultaneous playback
★ Visual program scheduling and management
★ Media library management, supporting video, images, PPT, and audio
★ Media file grouping and sorting
★ Bulk media folder import
★ Supports NDI source capture
★ Supports website, capture card, streaming media, custom text input sources
★ Supports configuration of playback collections
★ Supports PPT, streaming media, and website playback
★ Supports PPT control via page-turner
★ Playback progress management
★ Automatically switches to the next program for seamless playback
★ Supports layer size and priority adjustment
★ Master media timing, automatic program switching based on main media timing
★ Supports fade-in/out transition effects
★ Supports layer masking and layer cropping
★ Supports chroma keying
★ Supports layer blur and opacity adjustments
★ Supports hardware decoding
★ Supports one-click black screen
★ Supports software auto-start and auto-play upon startup
★ Supports control via visual smart control platform
Specifications
Hardware Parameters
CPU:   24 cores 32 threads, turbo 5.6GHz
Memory:   32GB DDR5
Storage:   1TB high-speed solid-state drive
Graphics card:   NVIDIA RTX 4000 8GB Graphics card NVIDIA RTX 4000 8GB Professional Graphics Card
Power Supply:   650W
Motherboard:   Custom Workstation Motherboards
Software
Operating System:   Windows 10 Enterprise LTSC
Broadcast Control System:   Pre-installed VMEET broadcast control system (without authorization)
