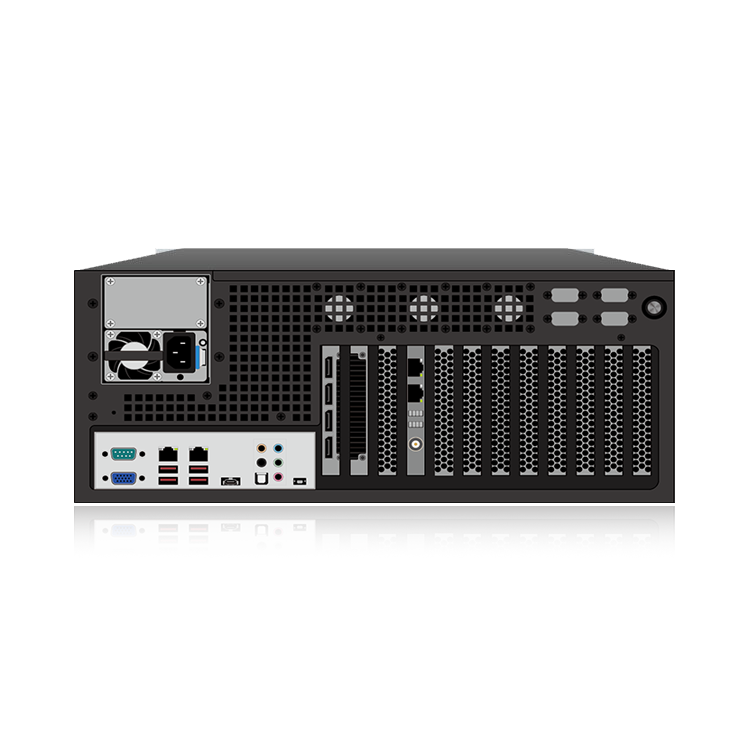

VMEET SG P6-MUHD xR Virtual Production Media Server provides rendering/compositing/streaming services for xR virtual production. Equipped with the latest NVIDIA GPU, it supports mainstream engines such as UE5. The powerful GPU rendering capability delivers photo-quality results, realistic lighting, and shading, offering strong support for xR virtual production!

Features

★ Powerful rendering capabilities: Supports real-time 2D/3D rendering, post-processing, effects, color grading, LUTs, and advanced 3D graphics features such as HDR, depth of field, shadows, reflections, refractions, etc.

★ Supports real-time rendering with Unreal Engine: Features technologies like DLSS, ray tracing, RTXGI, etc.

★ Virtual studio functionality: Includes advanced chroma keying, multiple virtual cameras with editable motion paths, customizable virtual cameras, and broadcast control interfaces.

★ On-set actor interaction: Provides virtual lighting for actors, as well as real-time projection of shadows, reflections, and refractions.

★ Device compatibility: Supports camera tracking with systems like Antilatency, OptiTrack, Qualisys, HTC Vive, and more.

★ High-definition rendering: Supports rendering at resolutions up to 8K.

★ Multi-platform streaming: Capable of streaming directly to platforms such as Bilibili, Tiktok, and other RTMP-supported platforms.

★ Flexible programming interface: Offers a node-based graphical programming interface, real-time scene editing, and curve-based timeline and animation editing.

★ Multiple control methods: Supports event and rendering parameter control via touchscreen, mouse, keyboard, GPIO, MIDI, DMX/ArtNet.

★ Customization capabilities: Allows importing 3D objects and scenes with materials and animations in COLLADA or FBX formats, and creating custom materials/post-processing shaders in the node-based editor.

★ Multi-language support: Switchable between Chinese and English.

Specifications

Hardware Specifications

4U chassis:		2.5-inch hot-swappable 4-bay, 482(W)*500(L)*178(H)
Front secondary screen:		7-inch embedded touch screen, 1024*600
CPU:		16 cores 32 threads, turbo 5.7GHz
Memory:		64GB DDR5
Power Supply:		2000W redundant power supply
Graphics card:		Nvidia Quadro RTXA6000 professional graphics card
Display output interface:		4*DP1.4
Hard disk:		PCIE5.0 4TB*1, Support PCIE5.0 Raid0 or Raid1
Frame sync card:		Nvidia Quadro SYNCII
Frame sync signal:		BNC output or input

Software

xR virtual camera system:		Support
Real-time rendering system:		Unreal Engine 5
Operating system:		Windows 11 Pro
LED virtual shooting:		Support
Green screen virtual shooting:		Support
Tracking system:		Support
Color aberration elimination:		Support
Moire elimination:		Support
