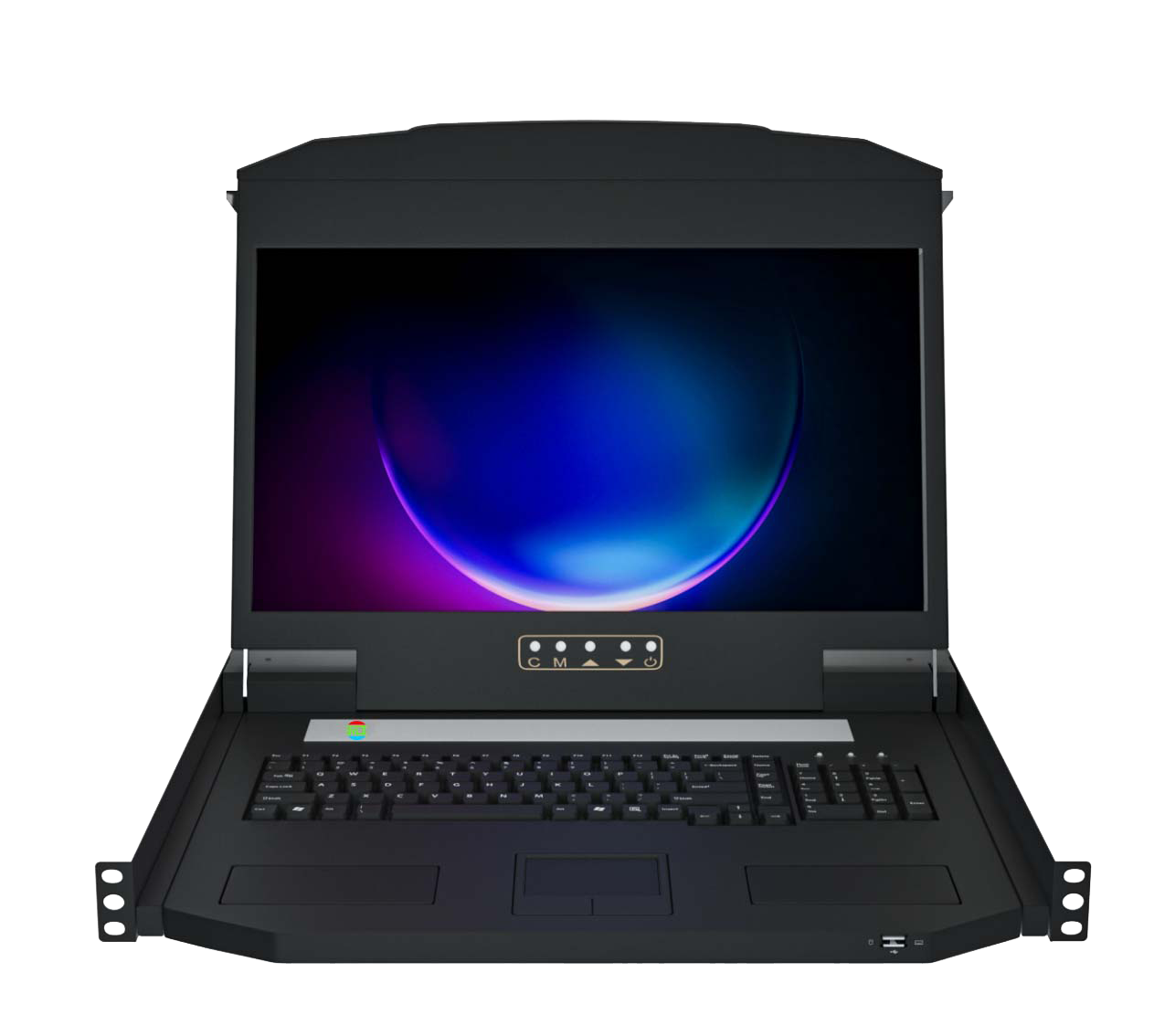

The VMEET SG EMO-18504 4-channel 1080P rack-mounted debug display integrates an LED monitor, ultra-thin keyboard, and mouse touchpad into a 1U-height unit. It uses a drawer-style installation method, solving the space limitations of standard keyboards, monitors, and mice, saving up to 85% of space. It features a high-quality A-grade 18.5" LED (no bright spots) display and a built-in switcher that can directly manage 4 servers and up to 128 servers in total.
Features
★ Supports 4-channel HDMI signal input, a single control terminal can manage 4 servers, and multiple devices can be cascaded to manage up to 128 computers.
★ 18.5" LED screen, keyboard, and mouse integrated into a single dual-slide-rail body, occupying only 1U rack space; 18.5-inch LED LCD display, high brightness, high clarity, with a resolution of up to 1920x1080@60Hz.
★ Effectively saves space in the server room. When the keyboard/touchpad is not in use, it can be pushed back into the rack, leaving only the slim LED display for convenient server status monitoring. The slide rail includes a self-locking mechanism.
★ Supports hot-swapping—servers can be added or removed without turning off the power.
★ Offers an automatic scan mode for continuous monitoring of selected hosts.
★ Drawer-style design, with a front-facing USB 2.0 interface providing USB HUB functionality.
★ Easily switch between servers using hotkeys or panel buttons.
★ Compatible with Dos/Windows series, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Kylin OS, UOS (UnionTech OS), Deepin, Puhua OS, Red Flag Linux, and other operating systems.
★ The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Specifications
|
Computer connection:
|
|
4 computers |
|
Maximum computer connections:
|
|
128 units |
|
Cable port:
|
|
HDMI interface (3*USB keyboard and mouse) |
|
Switch scan time:
|
|
1~255 seconds (OSD adjustable) |
|
Applicable cabinet:
|
|
800-1040MM |
|
Switching method:
|
|
Hotkey toggle key toggle |
|
LED Display:
|
|
Size: 18.5" LED
Resolution: 1920*1080@60Hz
Brightness: 300nits
Contrast: 1000:1 |
|
Keyboard/Mouse:
|
|
104 Mechanical Silent Keyboard Touchpad |
|
Voltage input:
|
|
Voltage input: A110V-240V 50Hz-60Hz, Power: 35W |
|
Material technology:
|
|
High strength corrosion resistant steel plate |
|
Dimensions (L*W*H):
|
|
High strength corrosion resistant steel plate |
