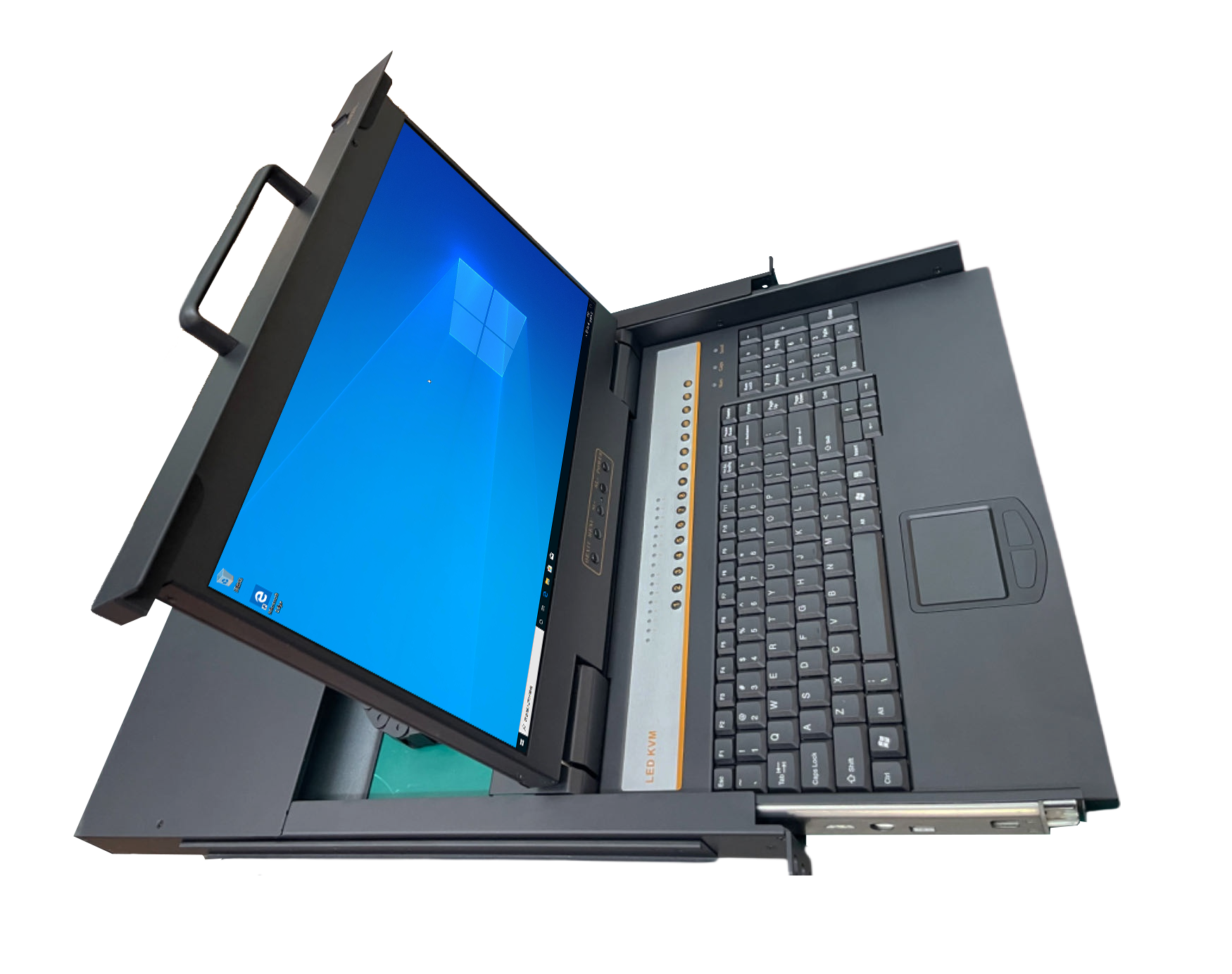

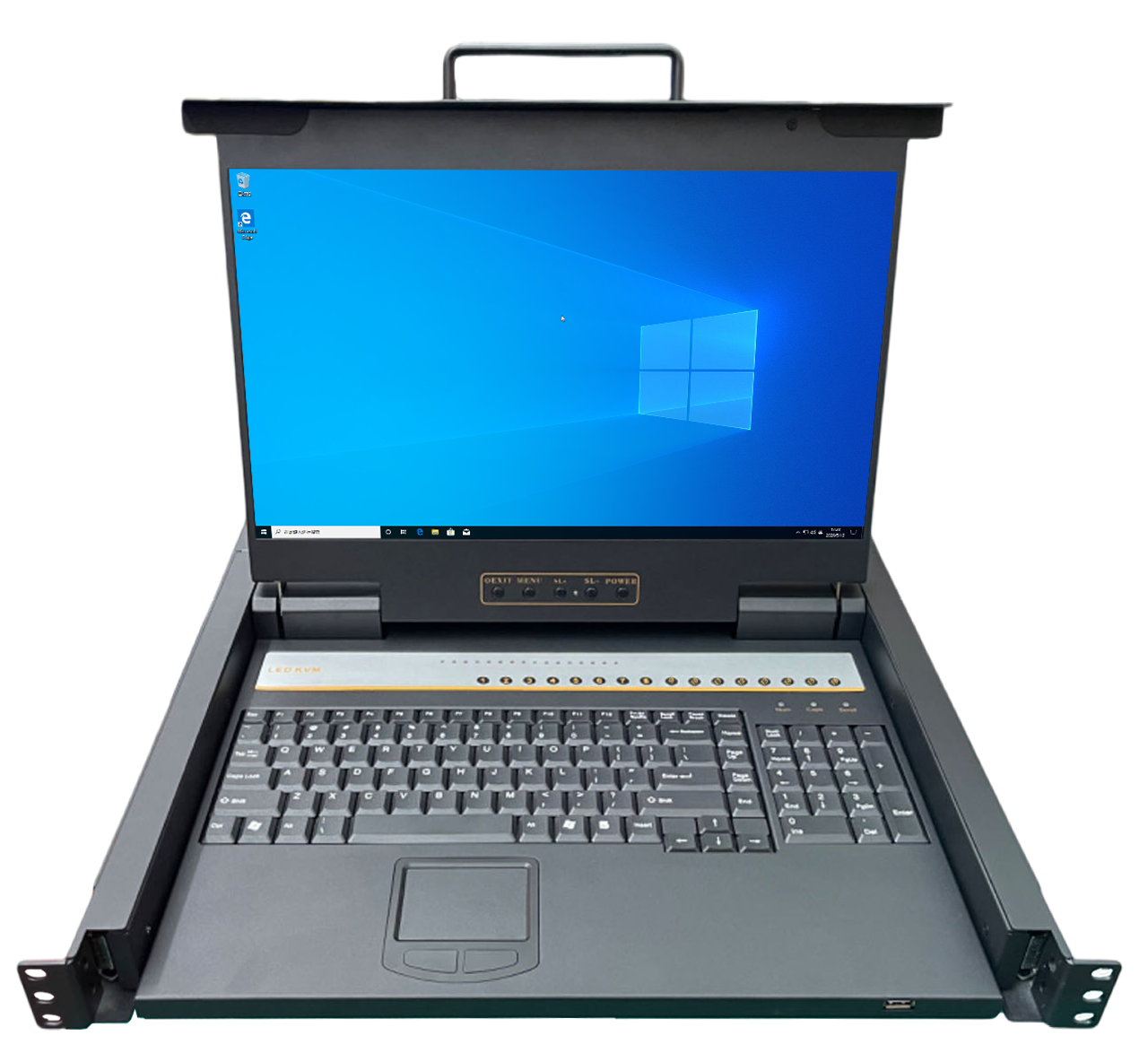

The VMEET SG EMO-17316 16-channel 1080P rack-mounted debug display integrates an LED monitor, ultra-thin keyboard, and mouse touchpad into a 1U-height unit. It uses a drawer-style installation method, solving the space limitations of standard keyboards, monitors, and mice, saving up to 85% of space. It features a high-quality A-grade 17.3" LED (no bright spots) display and a built-in switcher that can directly manage 16 servers and up to 512 servers in total.
Main Features

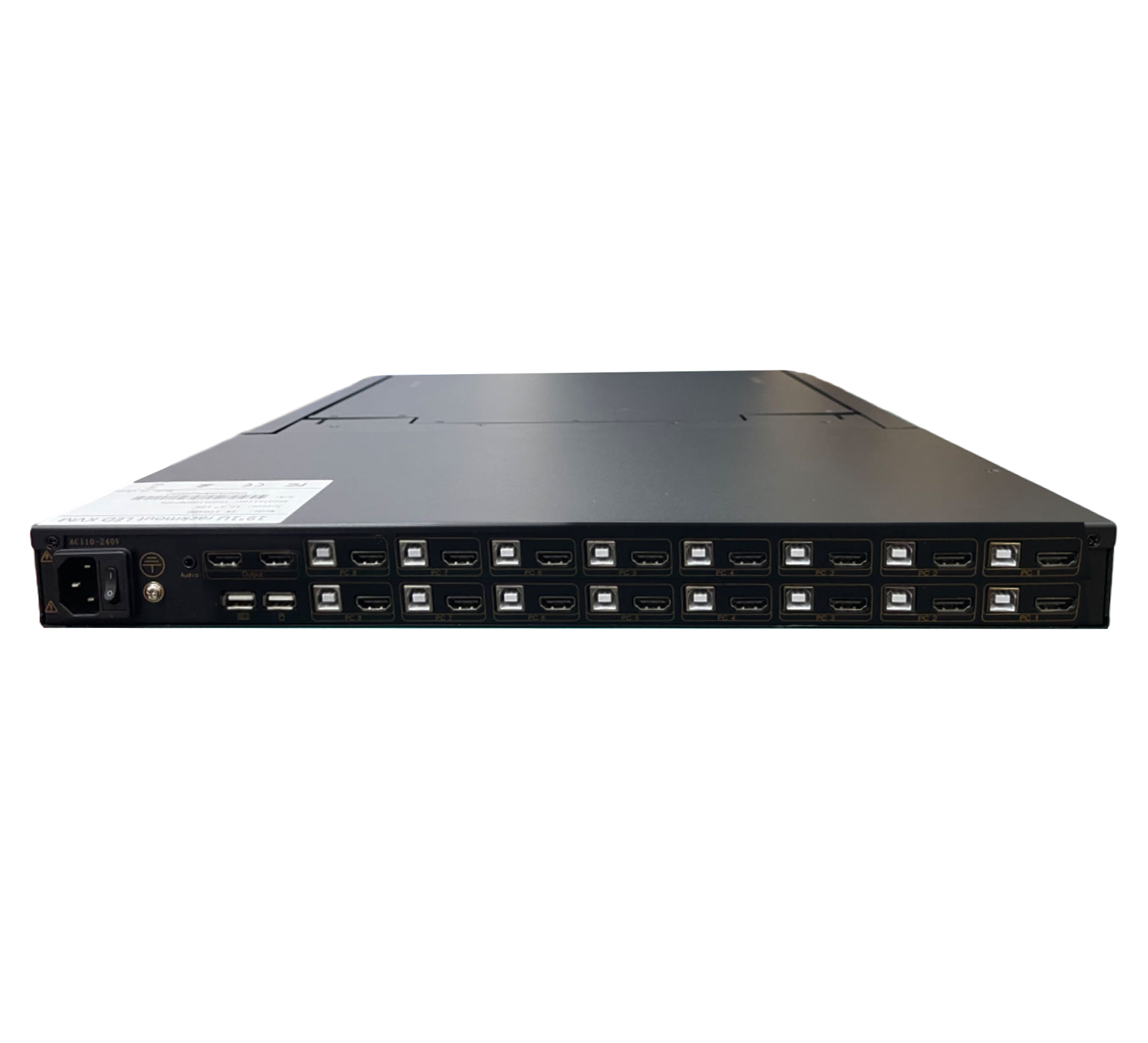

★ Supports 16 HDMI signal inputs, with a single control terminal managing 16 servers, and can be cascaded to manage multiple devices, up to a maximum of 512 computers.
★ 17.3" LED screen, keyboard, mouse, and switcher all in one, with a dual-slide rail design occupying only 1U of rack space; the 17.3-inch LED display offers high brightness, high clarity, and a resolution of up to 1920x1080@60Hz.
★ Supports server naming and allows quick server location by fuzzy input of the SN (serial number) for fast and secure server selection.
★ Supports multi-user account management and hierarchy levels, password protection, and the ability to search for PC server names.

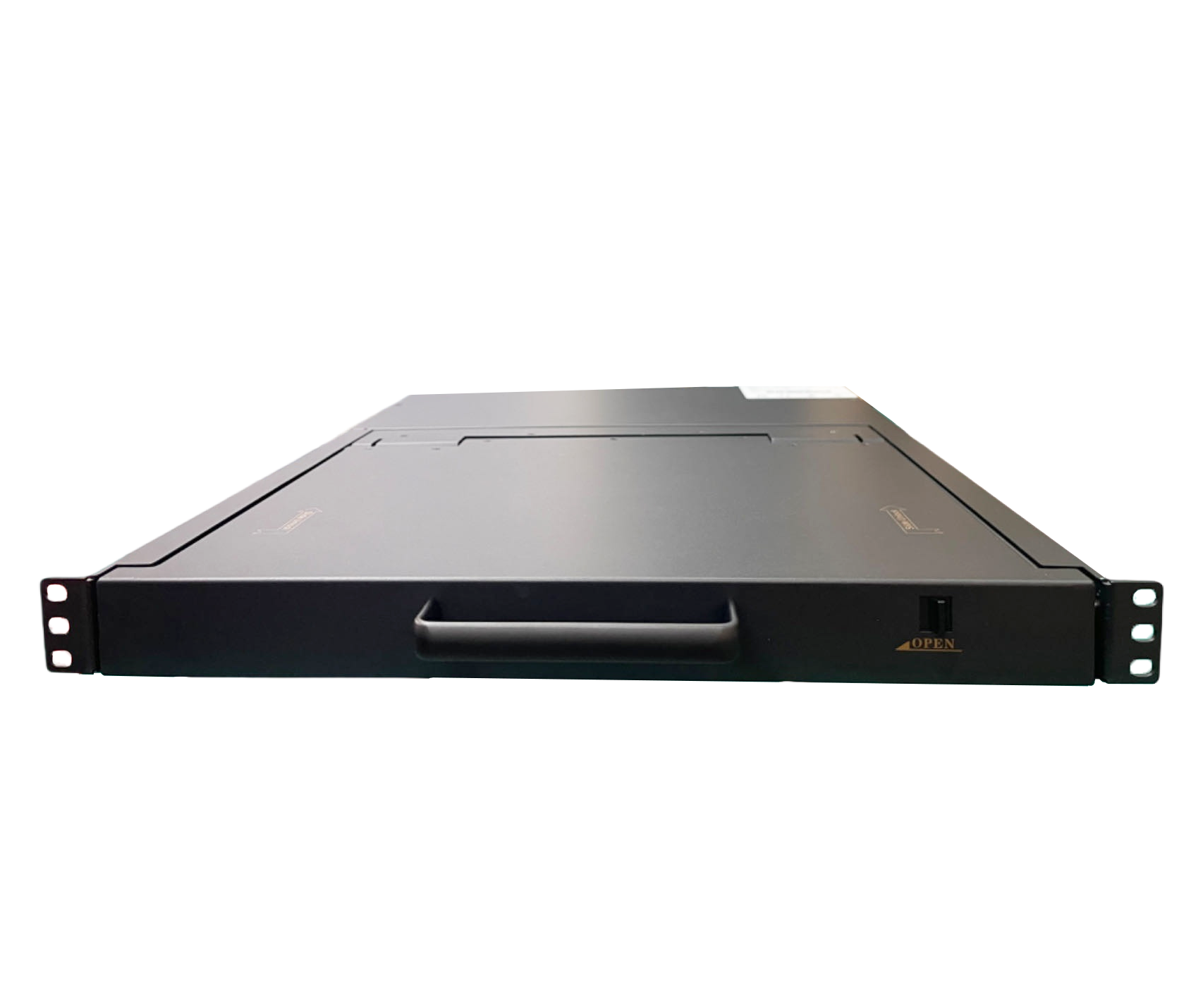

★ Efficiently saves space in the server room; when the keyboard/touchpad is not in use, they can be pushed back into the rack, leaving only the slim LED display for easy server status monitoring. The slide rail is equipped with a self-locking mechanism.
★ Supports hot-swapping—servers can be added or removed at any time without turning off the power.
★ Offers an automatic scanning mode for continuous monitoring of the selected hosts.
★ Drawer-style design with a front USB 2.0 port, enabling USB HUB functionality.
★ Easily switch between servers using hotkeys or panel buttons.
★ Compatible with Dos/Windows series, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Kylin OS, UOS (UnionTech OS), Deepin, Puhua OS, Red Flag Linux, and other operating systems.
★ The LED display can tilt up to 135 degrees for a comfortable viewing angle.
Specifications
| Computer connection: |
|
16 computers |
| Maximum computer connections: |
|
512 units |
| Cable port: |
|
HDMI interface (3*USB keyboard and mouse) |
| Switch scan time: |
|
1~255 seconds (OSD adjustable) |
| Applicable cabinet: |
|
800-1040MM |
| Switching method: |
|
Hotkey toggle key toggle |
| LED Display: |
|
Size: 17.3" LED
Resolution: 1920*1080@60Hz
Brightness: 300nits
Contrast: 1000:1 |
| Keyboard/Mouse: |
|
104 Mechanical Silent Keyboard Touchpad |
| Voltage input: |
|
A110V-240V 50Hz-60Hz
Power: 35W |
| Material technology: |
|
High strength corrosion resistant steel plate |
| Dimensions (L*W*H): |
|
450mm(depth)*481mm(width)*43.8mm(height) |
