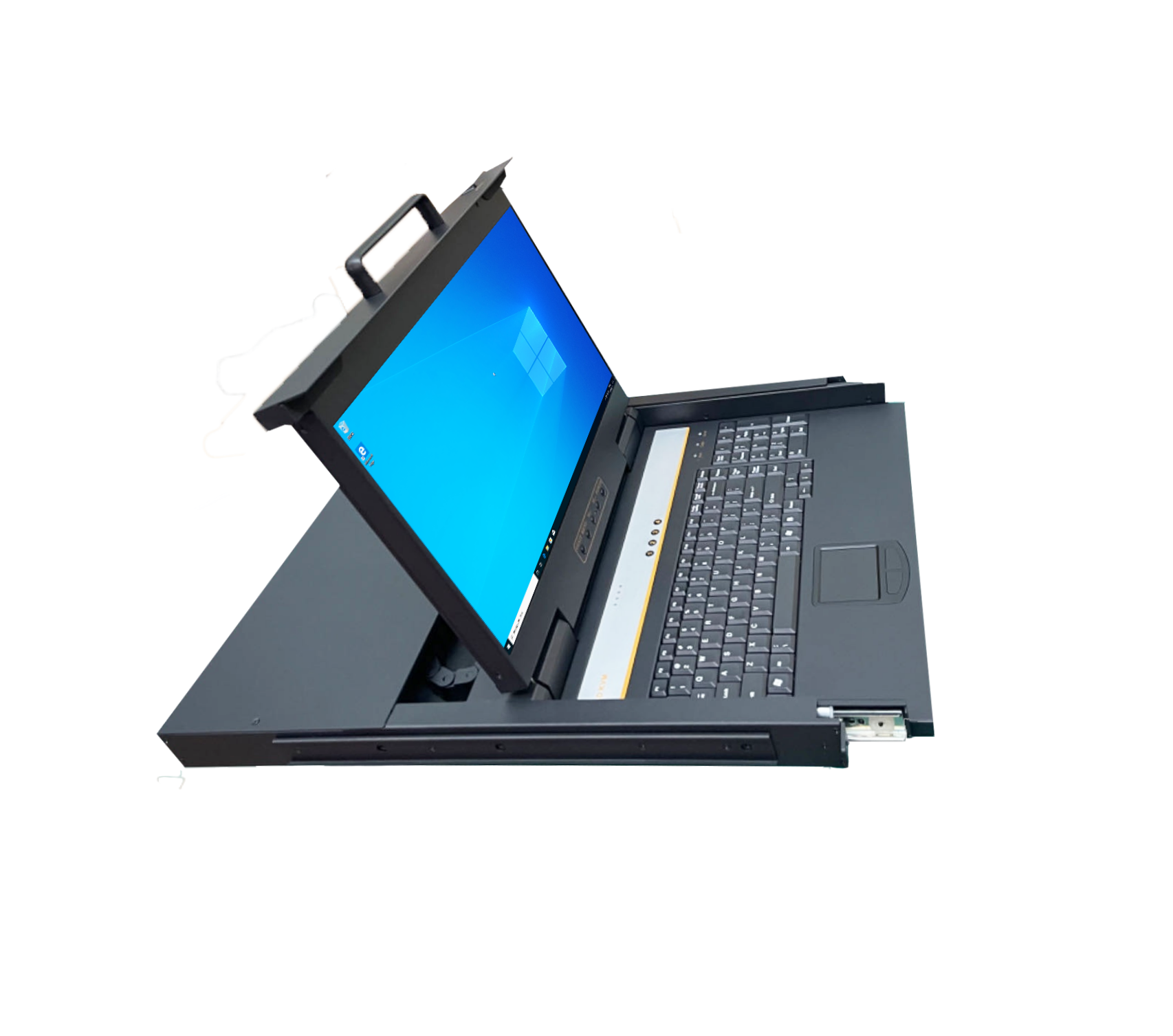

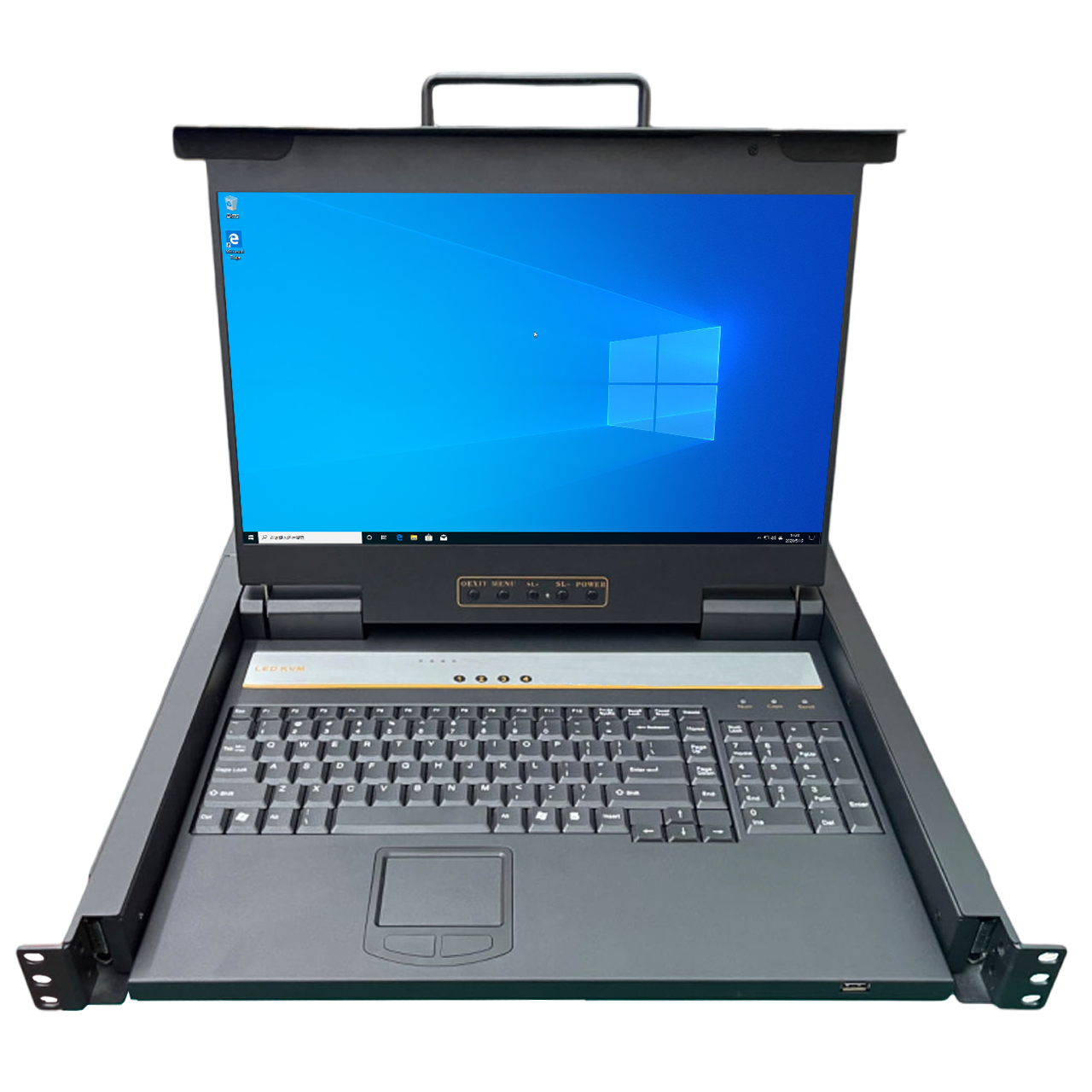

VMEET SG EMO-17304 4-channel 1080P rack-mounted debugging display integrates an LED monitor, ultra-thin keyboard, and mouse touchpad into a 1U-height unit. It uses a drawer-style installation method, which saves 85% of space compared to standard keyboards, monitors, and mice in limited space environments. It features a high-quality A-grade 17.3" LED (no bright spots) display with a built-in switcher, which can directly manage 1 server and up to 32 servers in total.

Main Features

★ Supports 4 HDMI signal inputs, with a single control terminal managing 4 servers, and can be cascaded to manage multiple devices, up to a maximum of 128 computers.

★ 17.3" LED screen, keyboard, mouse, and switcher all in one, with a dual-slide rail design occupying only 1U of rack space; the 17.3-inch LED display offers high brightness, high clarity, and a resolution of up to 1920x1080@60Hz.

★ Efficiently saves space in the server room; when the keyboard/touchpad is not in use, they can be pushed back into the rack, leaving only the slim LED display for easy server status monitoring. The slide rail is equipped with a self-locking mechanism.

★ Supports hot-swapping—servers can be added or removed at any time without turning off the power.

★ Offers an automatic scanning mode for continuous monitoring of the selected hosts.

★ Drawer-style design with a front USB 2.0 port, enabling USB HUB functionality.

★ Easily switch between servers using hotkeys or panel buttons.

★ Compatible with Dos/Windows series, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Kylin OS, UOS (UnionTech OS), Deepin, Puhua OS, Red Flag Linux, and other operating systems.

★ The LED display can tilt up to 135 degrees for a comfortable viewing angle.

Specifications

Computer connection:		4 computers
Maximum computer connections:		128 units

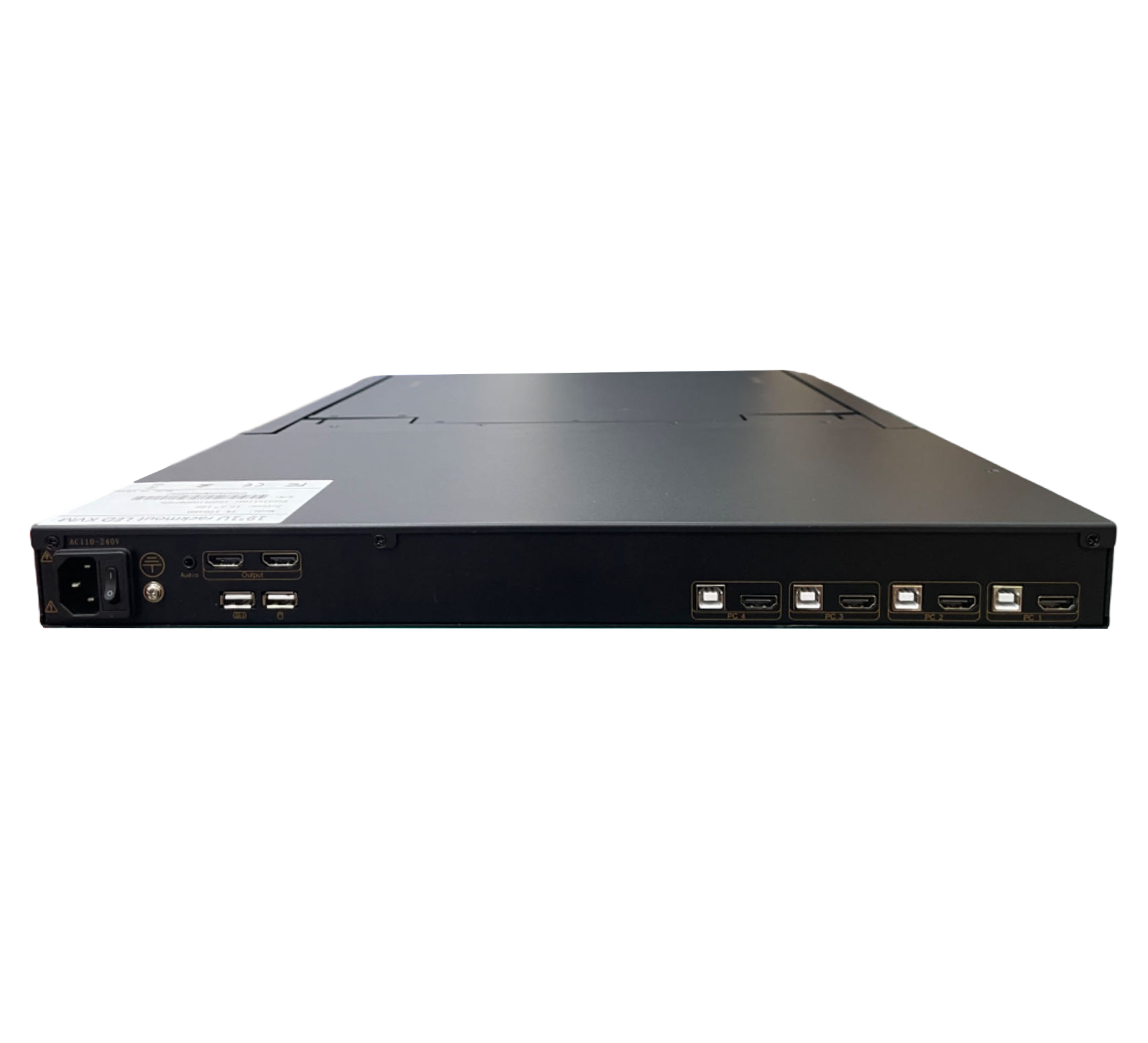

Cable port:		HDMI interface (3*USB keyboard and mouse)
Switch scan time:		1~255 seconds (OSD adjustable)
Applicable cabinet:		800-1040MM
Switching method:		Hotkey toggle key toggle
LED Display:		Size: 17.3" LED Resolution: 1920*1080@60Hz Brightness: 300nits Contrast: 1000:1
Keyboard/Mouse:		104 Mechanical Silent Keyboard Touchpad
Voltage input:		A110V-240V 50Hz-60Hz Power: 35W
Material technology:		High strength corrosion resistant steel plate
Dimensions (L*W*H):		550mm(depth)*481mm(width)*43.8mm(height)
